Stránky produktu: https://www.tp-link.com/cz/home-networking/wifi-router/tl-wr1502x/
Technické specifikaceWIRELESS | |
Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |

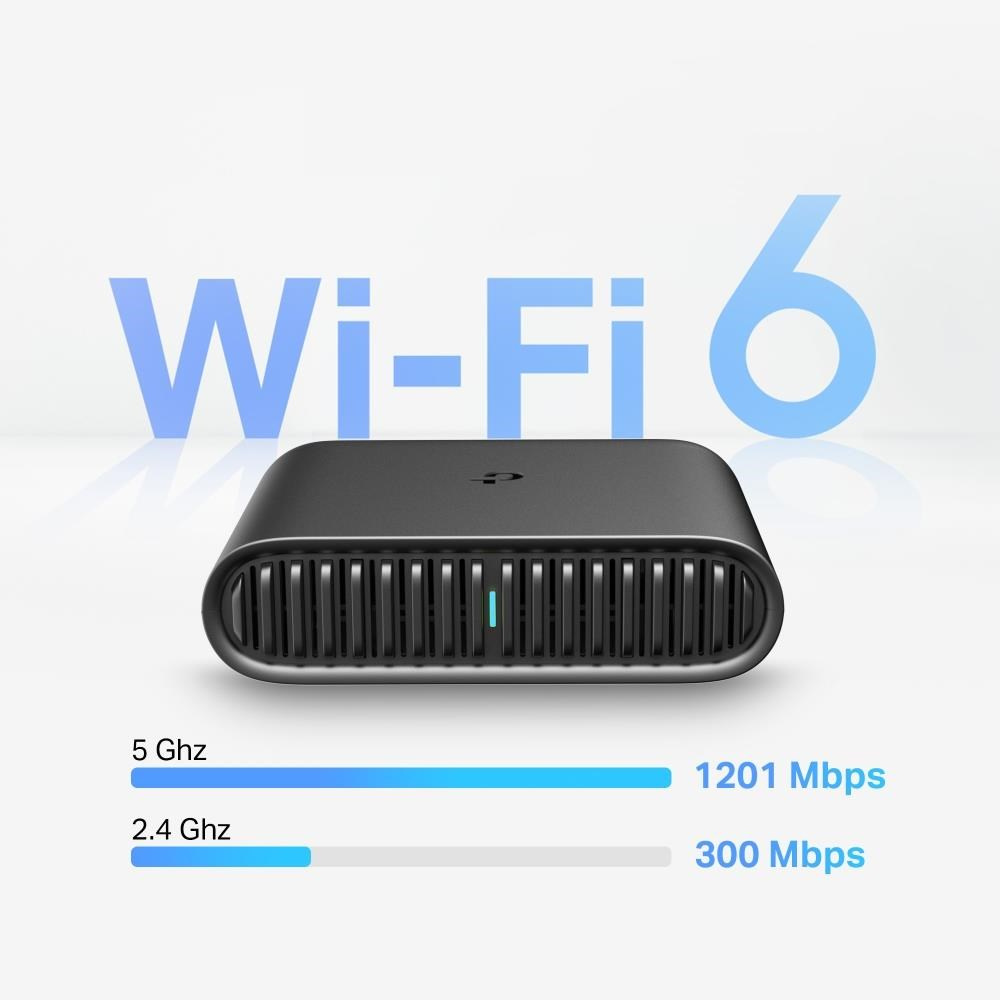

WiFi Speeds | AX1500 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n) |
WiFi Capacity | High Dual-Band Allocate devices to different bands for optimal performance Airtime Fairness Improves network efficiency by limiting excessive occupation 4 Streams Connect your devices to more bandwidth |
Working Modes | Router Mode Access Point Mode Range Extender Mode USB Tethering Mode 3G/4G USB Modem Mode Client Mode Hotspot Mode (WISP Mode) |
SECURITY | |
Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • Wireguard VPN Server |
VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • Wireguard VPN Client |
WiFi Encryption | WPA2-PSK WPA3-Personal WPA/WPA2-Enterprise |
HARDWARE | |

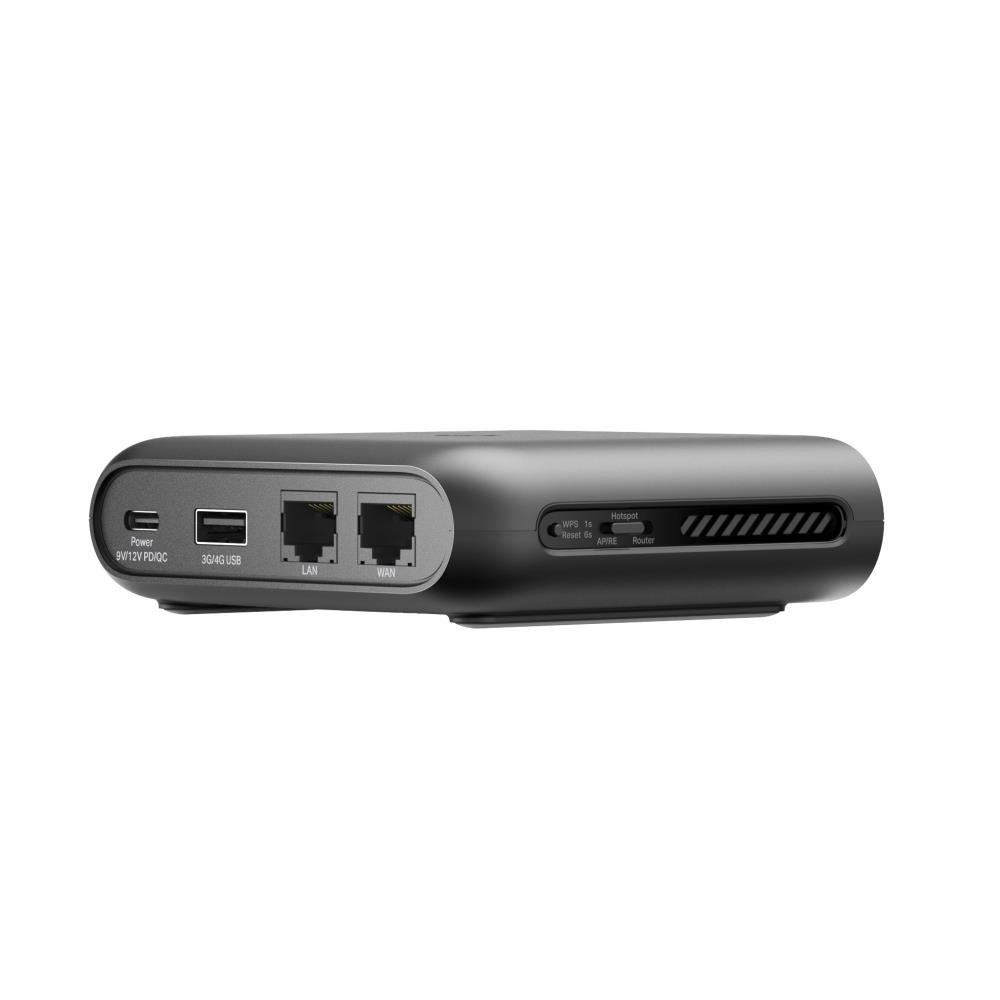

Ethernet Ports | 1× Gigabit WAN Port 1× Gigabit LAN Port |
USB Support | 1× USB 2.0 Port |
Buttons | WPS/Reset Button Mode Switch |
Power | 12V/1.5A,External DC power adapter |
SOFTWARE | |
Protocols | IPv4 IPv6 |
WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
Quality of Service | QoS by Device |
NAT Forwarding | Port Forwarding Port Triggering DMZ UPnP |
DHCP | DHCP Server DHCP Client List Address Reservation |
DDNS | TP-Link NO-IP DynDNS |
Management Features | Tether App Webpage |
OTHER | |
Certifications | FCC, CE |
Environment | Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~60? (-40? ~140?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
TEST DATA | |
WiFi Transmission Power | CE: <20dBm(2.4 GHz) <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
WiFi Reception Sensitivity | 2.4GHz 11b 1M:-96dBm 11n HT20M MCS7:-73dBm 11n HT40M MCS7:-70dBm 5GHz 11a 6M:-93dBm 11ax HE20M MCS11:-63dBm 11ax HE40M MCS11:-60dBm 11ax HE80M MCS11:-59dBm |
PHYSICAL | |
Dimensions (W×D×H) | 4.09 × 3.54 × 1.10 in (104 × 90 × 28 mm) |
Package Content | TL-WR1502X Power Adapter RJ45 Ethernet Cable USB Cable Quick Installation Guide |
